Branding Customization for OOTB
screens
1) Copy the new image, custom-logo.png to the
$OIM_HOME/oim.ear/iam-consoles-faces.war/images/ directory.
Note1: Replace $OIM_HOME with the actual
path.
Note2: Please execute this step in both the
OIM servers if you are doing this in clustered environment.
2)
Add the following keys in the OIMUIBundle.properties:
OIMUIBundle_en.properties in adflibCommonUI.jar file located at oracle.iam.ui
package.
The
adflibCommonUI.jar file is located at WEB-INF\lib folder in oracle.iam.ui.view.war
file.
Execute
the below commands:
Note: Replace $OIM_HOME with the actual path.
Login to OIM server using SSH
Note: Replace $OIM_HOME with the actual path.
Login to OIM server using SSH
mkdir
viewwar
cd
$OIM_HOME
cp
./server/apps/oracle.iam.ui.view.war oracle.iam.ui.view.war.bak
cp $OIM_HOME/server/apps/oracle.iam.ui.view.war
/home/oracle/viewwar
cd
cd viewwar
jar
-xvf ../oracle.iam.ui.view.war
mkdir
–p WEB-INF/lib/delete
cd WEB-INF/lib/delete
jar
-xvf ../adflibCommonUI.jar
vi
./oracle/iam/ui/OIMUIBundle.properties
Modify the below properties as shown below:
oim.header=Custom Identity Management
login_branding_text= Custom Identity Management
IDENTITY_SELF_SERVICE_TITLE=Custom Identity Management Self Service
IDENTITY_ADVANCED_TITLE=Custom Identity Management System Administration
SIGN_IN_WELCOME_TEXT=Welcome
to the Custom Identity Management User and Administrative Console
SIGN_IN_ADVANCED_WELCOME_TEXT=Welcome
to the Custom Identity Management System Administration Console
vi ./oracle/iam/ui/OIMUIBundle_en.properties
Modify the below properties as shown below:
oim.header=Custom Identity Management
login_branding_text=Custom Identity Management
IDENTITY_SELF_SERVICE_TITLE=Custom Identity Management Self Service
IDENTITY_ADVANCED_TITLE=Custom Identity Management System Administration
SIGN_IN_WELCOME_TEXT=Welcome
to the Custom Identity Management User and Administrative Console
SIGN_IN_ADVANCED_WELCOME_TEXT=Welcome
to the Custom Identity Management System Administration Console
rm ../adflibCommonUI.jar
jar -cvfM ../adflibCommonUI.jar .
cd /home/oracle/viewwar/
rm -r /home/oracle/viewwar/WEB-INF/lib/delete
rm -r oracle.iam.ui.view.war
jar -cvfM oracle.iam.ui.view.war .
chmod 775 oracle.iam.ui.view.war
cp oracle.iam.ui.view.war $OIM_HOME/server/apps/
cd
rm -r viewwar
3) Stop the OIM Managed server(s) and then
remove the tmp and cache folders located at
$MIDDLEWARE_DOMAIN_HOME/servers/oim-server/
4) Start the OIM Managed server.
Note: Clear tmp and cache folders before you
restart.
5) Login to OIM Identity Console using the following
URL. http://<OIM Server
Hostname>:<OIM server Port>/identity and the following connections
page will appear as shown in the below:
Figure : OIM login page
6) Enter the value for User ID and Password and
Click on Sign In as shown in Figure above.
Figure
: OIM page after login
7)
Click
on Sandboxes as highlighted in figure above.
Figure
: OIM page after login
8)
Click on Create Sandbox as highlighted in Figure above.
Figure
: OIM Create Sandbox page.
9)
Enter “BrandingCustomization”
as the Sandbox Name and Sandbox Description and click Save and Close as
highlighted in Figure above.
Figure: OIM Create Sandbox confirmation
10) Click
OK on the Confirmation page.
Figure
: OIM page after sandbox creation
11)
Click on Customize link as shown in Figure above.
Figure: OIM Customize page
12)
Select “Source” from the view menu as
highlighted in Figure above.
Figure: Source view
Figure: Component Properties popup
14)
Click Edit as highlighted in Figure above, the
Component Properties popup will appear.
Figure: Component Properties popup
15) Select
the Style tab in Component Properties popup as highlighted in Figure above. Enter url('/oim/images/custom-logo.png')
in Background Image field and Click Apply and then click OK.
Figure: Source view
16) Click
on the Header next to Custom logo as highlighted in Figure above and then click Edit.
Figure: Component Properties popup
Figure: Component Properties popup
18) Enter
“Arial”
in Font filed and “16px” in Font Size field, then Click Apply and then click OK.
Figure: Source view
Figure: Sign in page Source view
20)
Select the logo and as highlighted in the Figure above
Figure: Component Properties popup
Figure: Component Properties popup
Figure: Sign in page Source view.
23) Click
on the Header next to custom logo as highlighted in Figure above and then click
Edit.
Figure: Component Properties popup
24) Select
the Style tab in Component Properties popup as highlighted in Figure above.
Figure: Component Properties popup
25) Enter
“Arial”
in Font filed and “16px” in Font Size field, then Click Apply and then click OK.
Figure: Sign in Source View Page
26) Click
Close as highlighted in Figure above.
Figure: Sign in Page
27) Enter
http://<oim-hostname>:<oim-port>/identity
in the browser address bar as highlighted in Figure above and click Enter.
Figure: OIM Page after Login
28) Click
on Sandboxes as highlighted in Figure above.
Figure: OIM Sandbox page
29) Select
the Branding Customization Sandbox and click Publish Sandbox as highlighted in
Figure above.

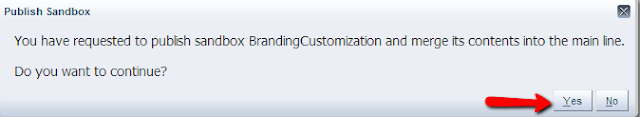

Figure: OIM Sandbox page
30) Click
“Yes” on the Confirmation Popup as highlighted in Figure above.
You will now see your custom logo on the Identity Pages.
